by e-ssentiel | 18 Jul 2023
The VWA-0000699-AA is a 3 Stages analog High Power Surface Mount Package amplifier operating in the frequency range 8 to 12 GHz. The SMD package includes a cascaded 3 stages amplifier designed in 0.25μm pHEMT process, and its decoupling circuit interfaces. The device...
by e-ssentiel | 18 Jul 2023
The VM042F is a 3 stages analog High Power Amplifier operating in the frequency range 8.5 to 12 GHz. The device is capable of +40dBm output power at Psat. This amplifier uses a leaded package with a thermally conductive coper composite base. A plastic lid, fixed with...
by e-ssentiel | 18 Jul 2023

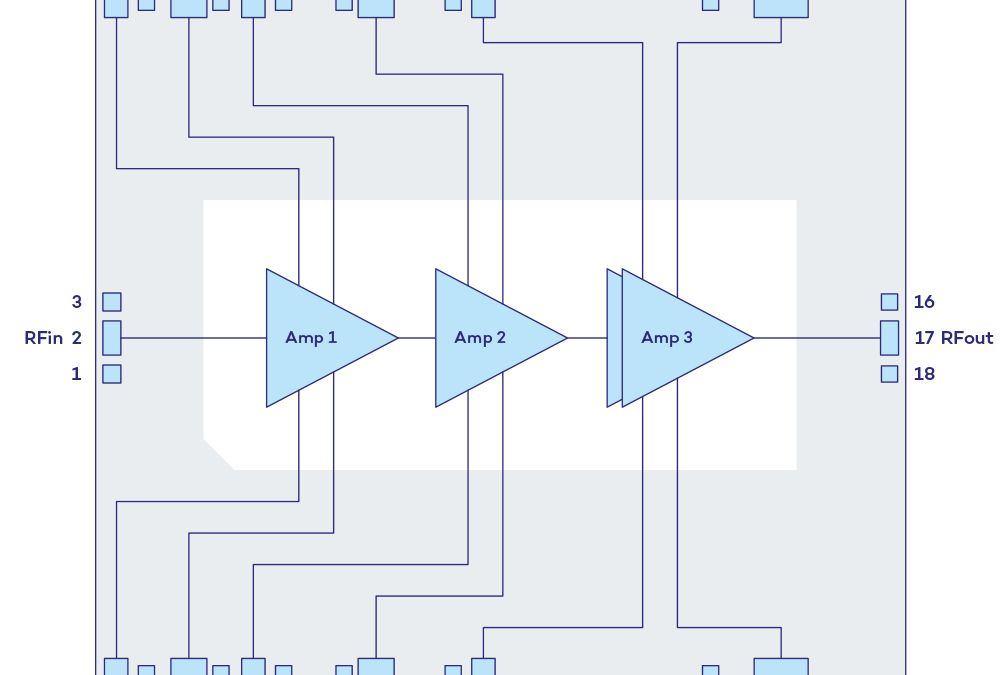

The VM042D is a 3 Stages analog High Power MMIC amplifier operating in the frequency range 8 to 12GHz. The device is a cascaded 3 stages ampli- fier designed in 0.25μm pHEMT process. The device is capable of 12W output power at Psat, and provides 25dB of large gain...
by e-ssentiel | 17 May 2023
The VM090Q is a packaged power amplifier matched through 50Ω RF accesses and operating from 8 to 11 GHz. It can provide an output power up to 20W and associated power added efficiency of 38% in pulsed mode. The VM090Q a plastic 48 leads 7 x 7 QFN designed to a surface...
