by e-ssentiel | 21 Jul 2023
The VWA5005017LA is a low noise amplifier MMIC die operating in the frequency range 7 to 13GHz. The device has a typical noise figure of 1.6dB with a typical gain of 19dB. It is manufactured on a pHEMT Technology and is especially suited for radar and for telecommu-...
by e-ssentiel | 21 Jul 2023

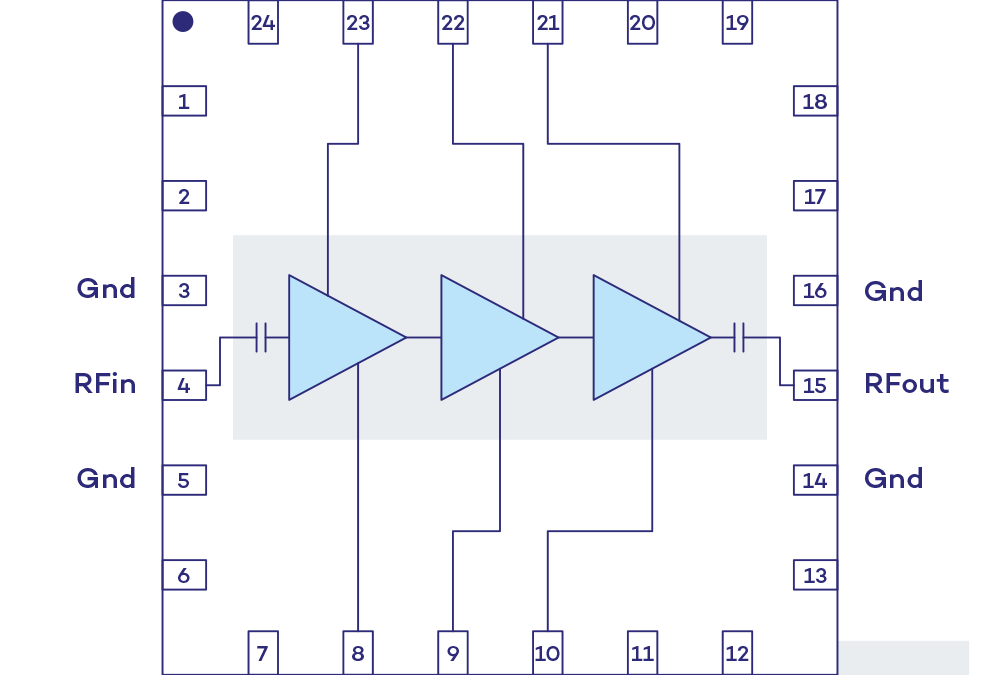

The VM205Q is 3 stage Low-Noise amplifier MMIC operating in the frequency range 27 to 32 GHz. The device is packaged in a 4×4 mm 24 lead Plastic Surface Mount Package (ROHS). This component uses VM205D Vectrawave die. The device has a linear gain of 26 dB and a...
by e-ssentiel | 21 Jul 2023

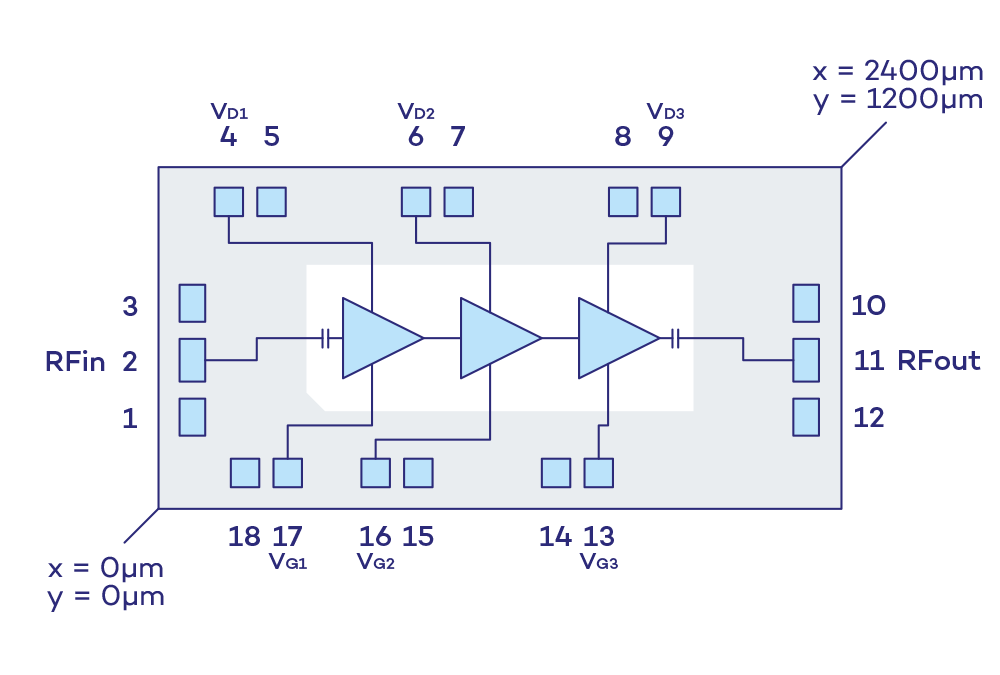

The VM205D is 3 stage Low-Noise amplifier MMIC operating in the frequency range 27 to 32 GHz. The device has a linear gain of 26 dB and a typical noise figure of 1.3 dB. Output RF power is 19 dBm for a biasing current of 78 mA at +3.5V supply voltage. It is...
by e-ssentiel | 21 Jul 2023

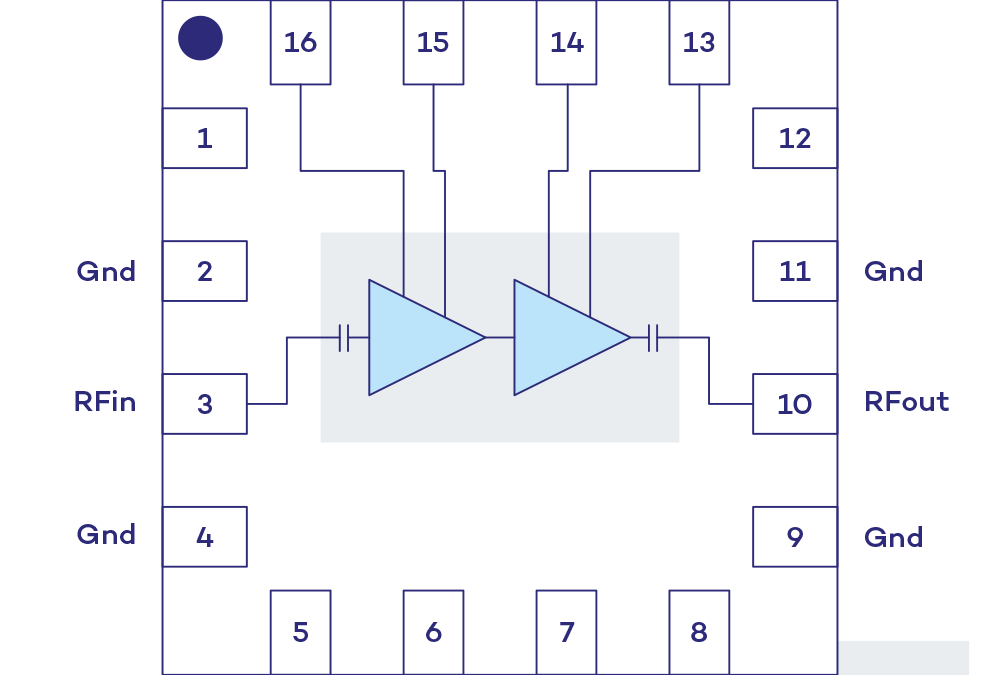

The VWA 0001149 AA is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device is packaged in a 3×3 mm 16 lead Plastic Surface Mount Package (ROHS). This compo- nent uses VWA 5001135 AA VectraWave die. The device has a linear gain of 18...
by e-ssentiel | 21 Jul 2023

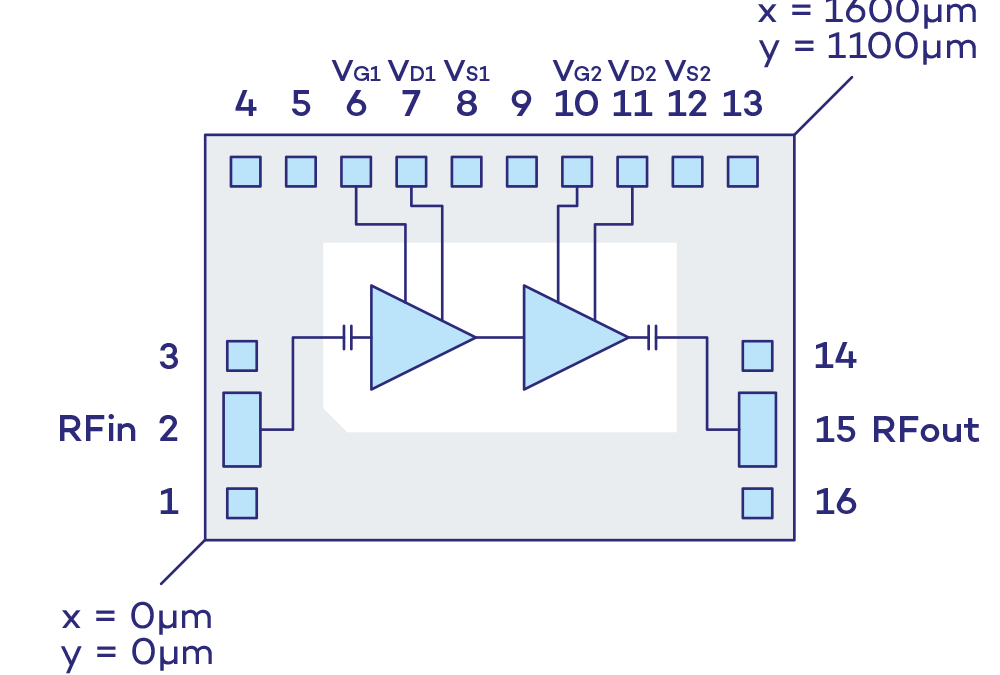

The VWA 5001135 AA is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device has a linear gain of 19dB and a typical noise figure of 1.0dB. Typical operating supply current is only 28mA with supply voltage at +3V and -3V. It is manufactured...
