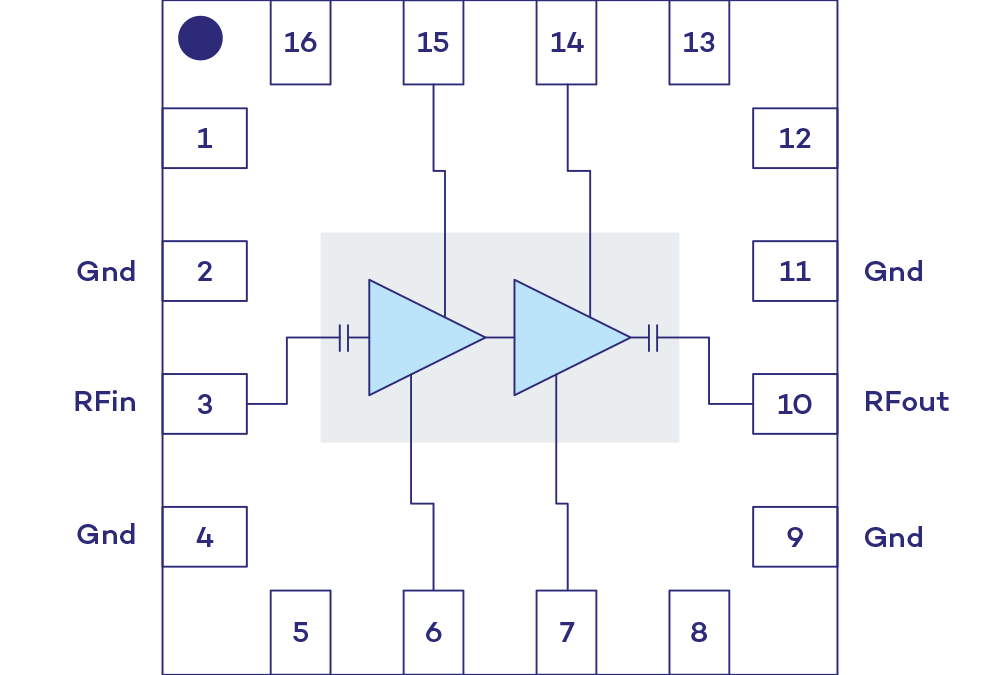

by e-ssentiel | 21 Jul 2023
The VM135Q is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device is packaged in a 3×3 mm 16 lead Plastic Surface Mount Package (ROHS). This compo- nent uses VWA 5001135 AA VectraWave die. The device has a linear gain of 18 dB and a...
by e-ssentiel | 21 Jul 2023

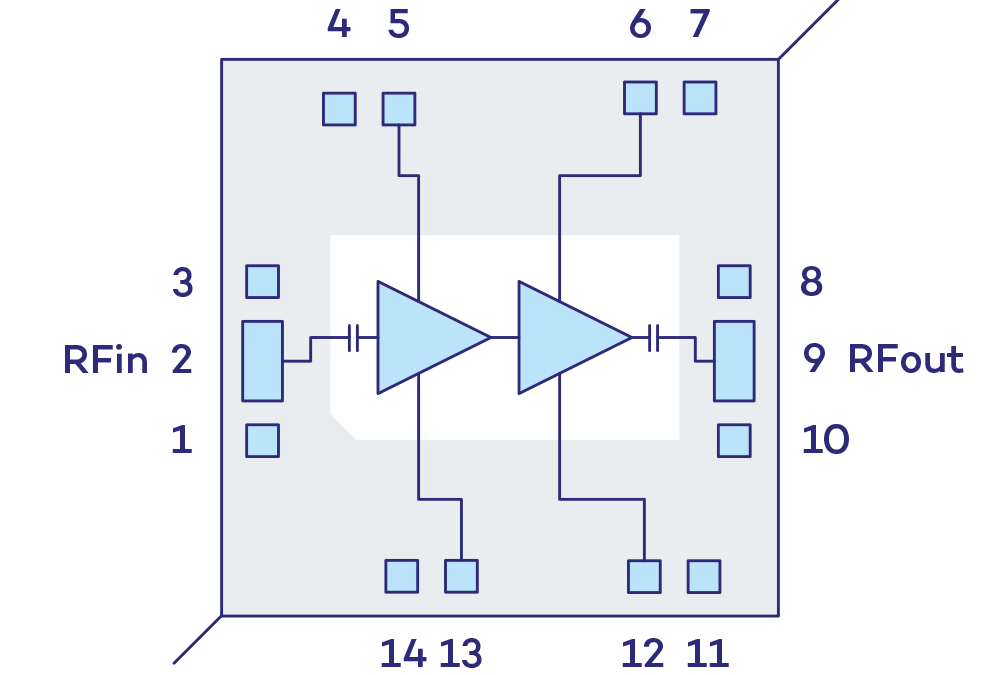

The VM135D is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device has a linear gain of 19dB and a typical noise figure of 1.0dB. Typical operating supply current is only 28mA with supply voltage at +3V and -3V. It is manufactured on a...
by e-ssentiel | 21 Jul 2023

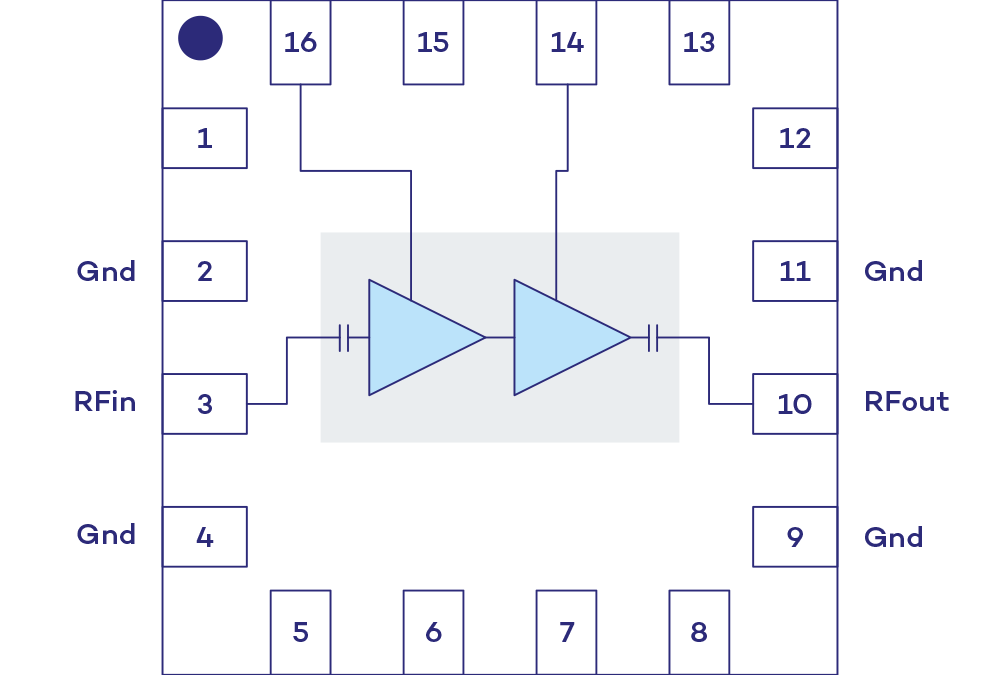

The VM134Q is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device is packaged in a 3×3 mm 16 lead Plastic Surface Mount Package (ROHS). This compo- nent uses VWA 5001134 AA VectraWave die. The device has a linear gain of 19 dB and a...
by e-ssentiel | 21 Jul 2023

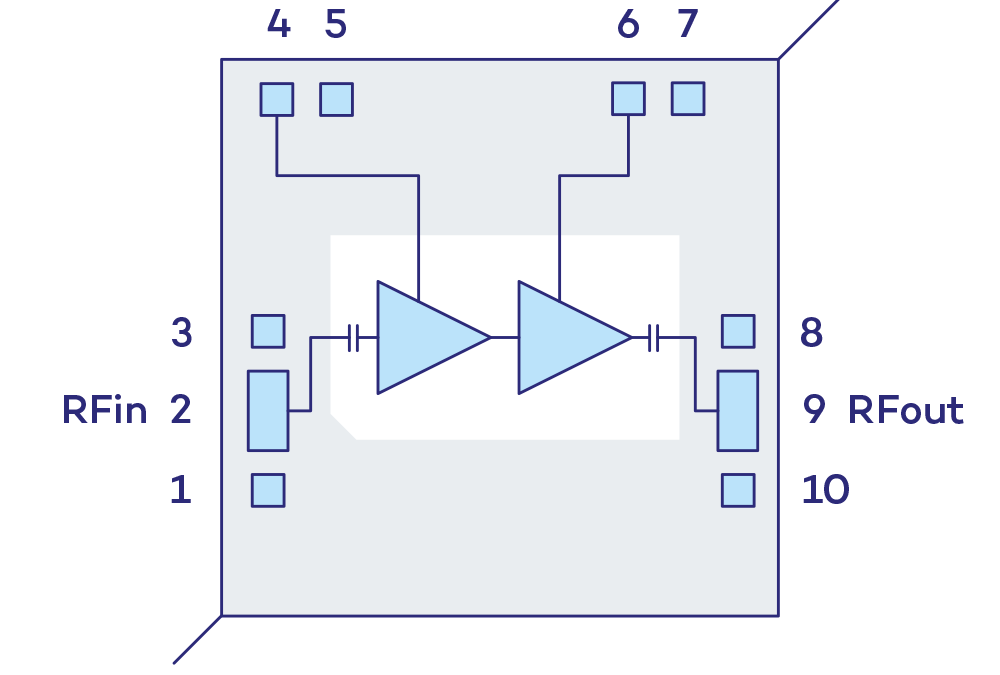

The VM134D is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device has a linear gain of 19dB and a typical noise figure of 1.0dB. Typical operating supply current is only 30mA with a supply voltage at +3V. It is manufactured on a PHEMT...
by e-ssentiel | 21 Jul 2023

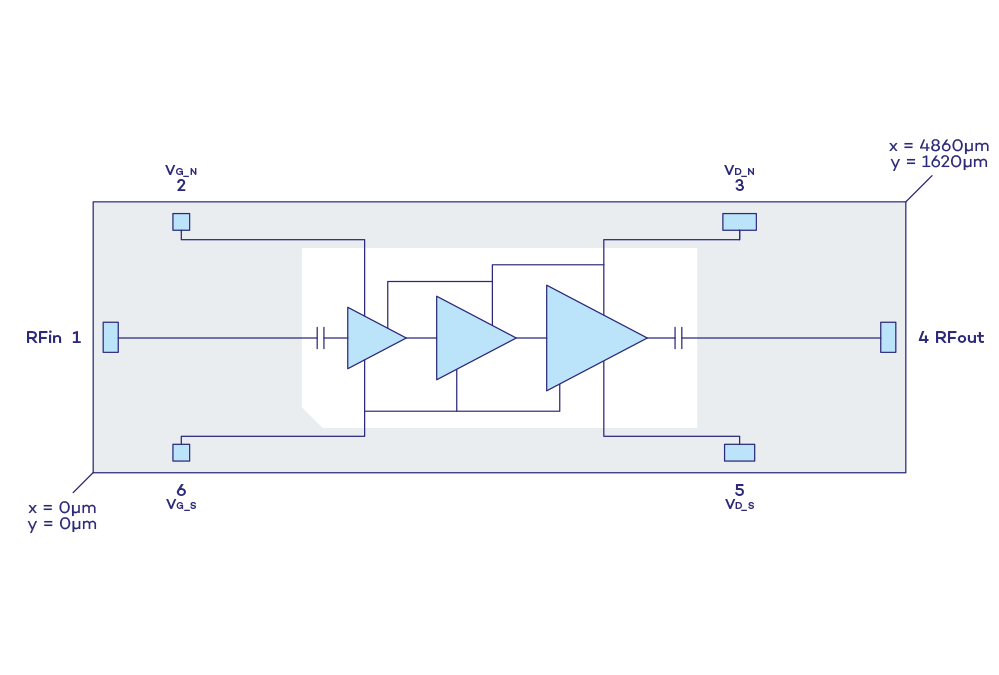

The VM175D is a Microwave Monolithic Integrated Circuit (MMIC) designed in HEMT (High Electron Mobility Transistor) structure for operating frequency range from 33 to 36GHz. The MMIC is developed on a 150nm GaN/SiC process and is internally matched to 50Ω RF accesses....
