by e-ssentiel | 21 Jul 2023

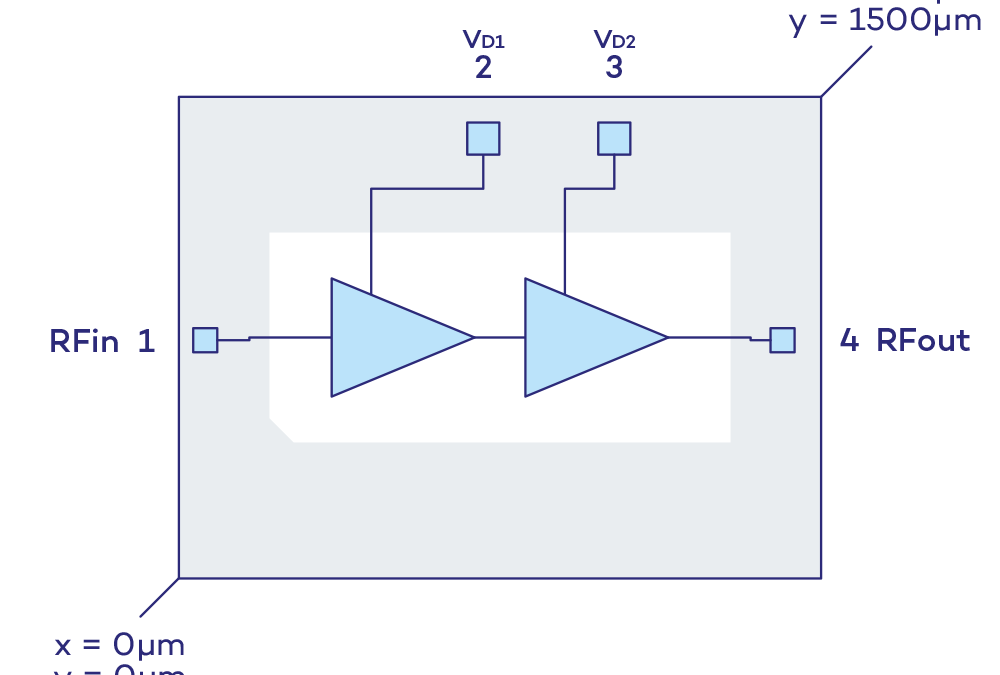

The VWA5000066AC is a 2 stages analog medium power MMIC amplifier operating in the frequency range 9.2 to 10.5GHz. The device is a cascaded 2 stages auto biased amplifier designed in 0.25μm pHEMT process. The device is capable of more than +23dBm output power at Psat,...
by e-ssentiel | 21 Jul 2023

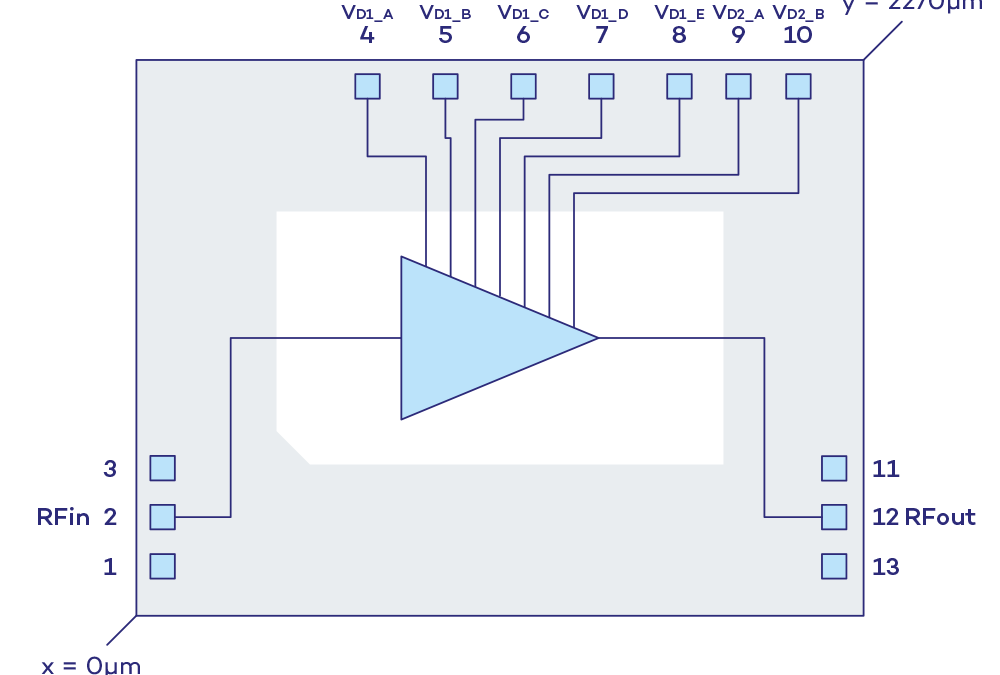

The VWA5000061AA is a gain block amplifier designed on a 0.15μm pHEMT process. The device delivers +15.5dBm of output power at saturation regime and more than +13.5dBm of output power at 1dB of gain compression. It provides a 0.2dB flat 13dB of linear gain from 8.5GHz...
by e-ssentiel | 21 Jul 2023

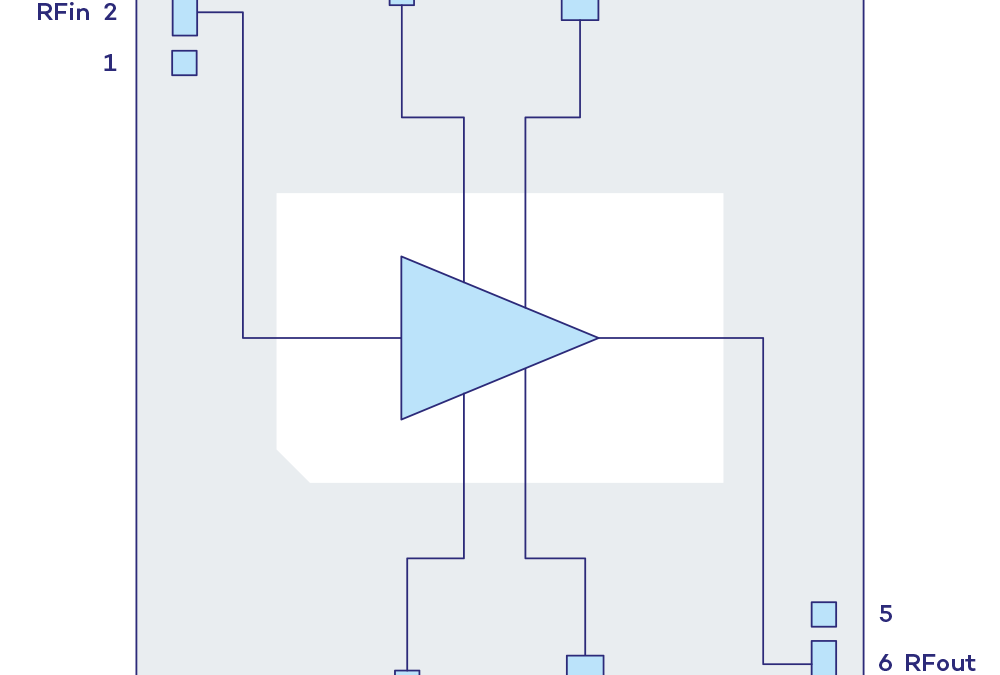

The VWA5000060AA is a medium power am- plifier designed on a 0.15μm pHEMT process. The device is capable of +24dBm of output power at saturation regime. And up to +22dBm of output power at 1dB of gain compression. It provides up to 11dB of linear gain from 2.5 to...
by e-ssentiel | 21 Jul 2023
The VWA 50035 AC is an 2 Stages analog medium power MMIC amplifier operating in the frequency range 7.5 to 13GHz. The device is a cascaded 2 stages auto biased amplifier designed in 0.25μm pHEMT process. The device is capable of more than +24dBm output power at Psat,...
by e-ssentiel | 20 Jul 2023
The VWA5001165AA is a Microwave Monolithic Integrated Circuit (MMIC) designed in HEMT (High Electron Mobility Transistor) structure for operating frequency range from 2 to 18GHz. The MMIC is developed on a 250nm GaN/SiC process and is internally matched for 50Ω RF...
