by e-ssentiel | 20 Jul 2023
The VM062D is a distributed amplifier designed on a 0.15μm pHEMT process. The device is capable of more than +22dBm of output power at saturation regime, up to 40GHz. And more than +16dBm of output power at 1dB of gain compression, up to 40GHz. It provides 15dB of...
by e-ssentiel | 20 Jul 2023

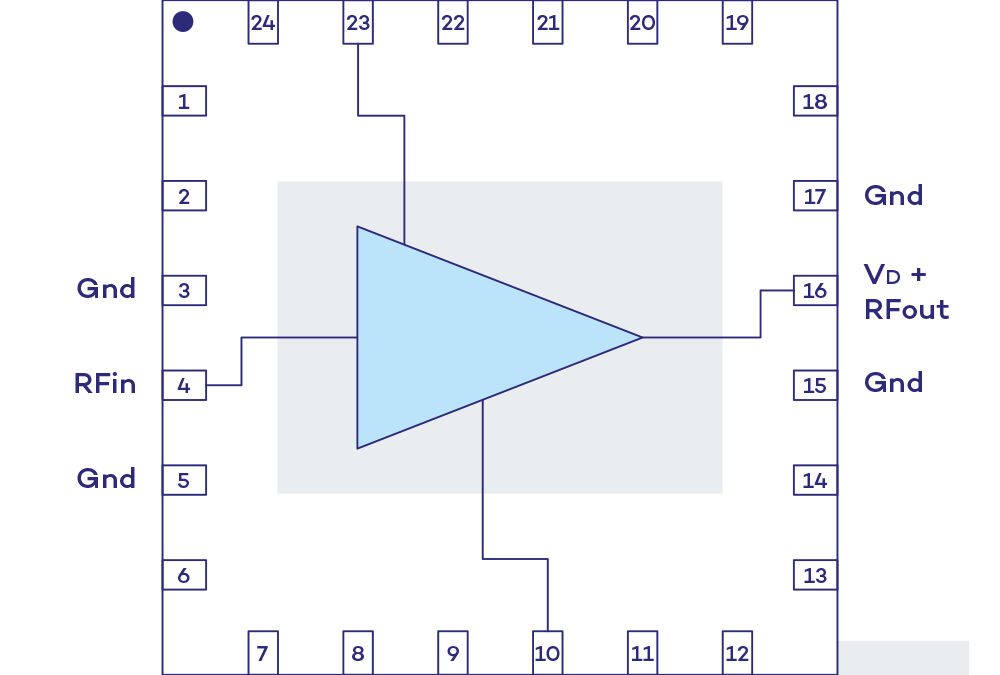

The VM056Q is a MMIC distributed amplifier in a 5x5mm 24 leads Plastic Surface Mount Package (ROHS). This component uses VWA5000056AA Vectrawave die. The device is operating in the frequency range 2 to 20 GHz and is capable of +27 dBm of output power in saturation...
by e-ssentiel | 20 Jul 2023

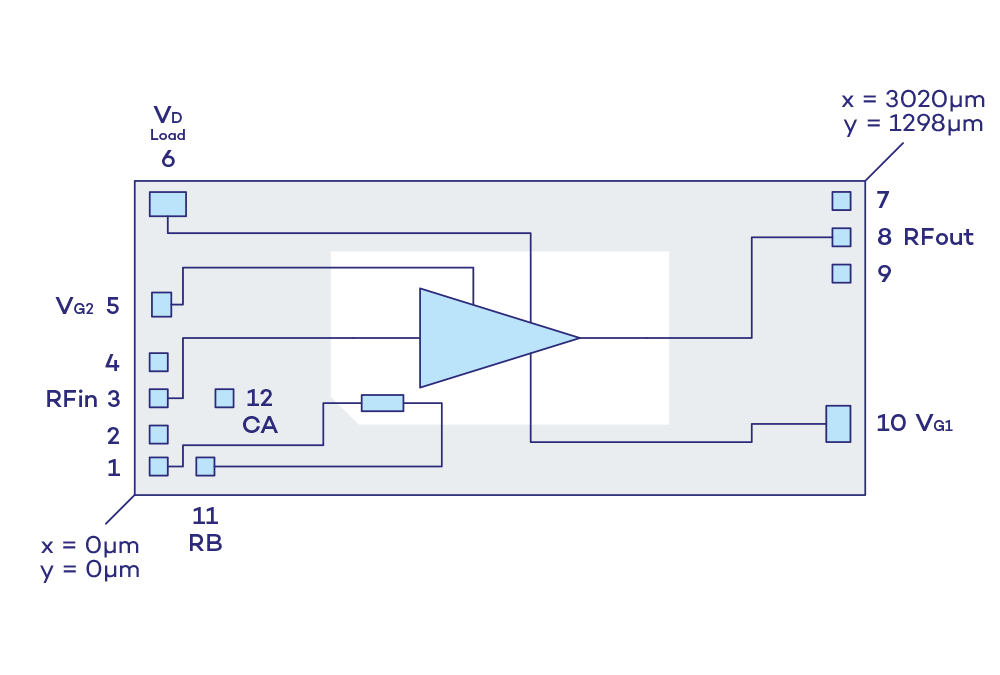

The VM056D is a power distributed amplifier designed on a 0.15μm pHEMT process. The devices is capable of more than +27dBm of output power at saturation regime, and provides more than 15dB of gain from 1 to 20GHz with less than 1dB of flatness with an excellent group...
by e-ssentiel | 20 Jul 2023

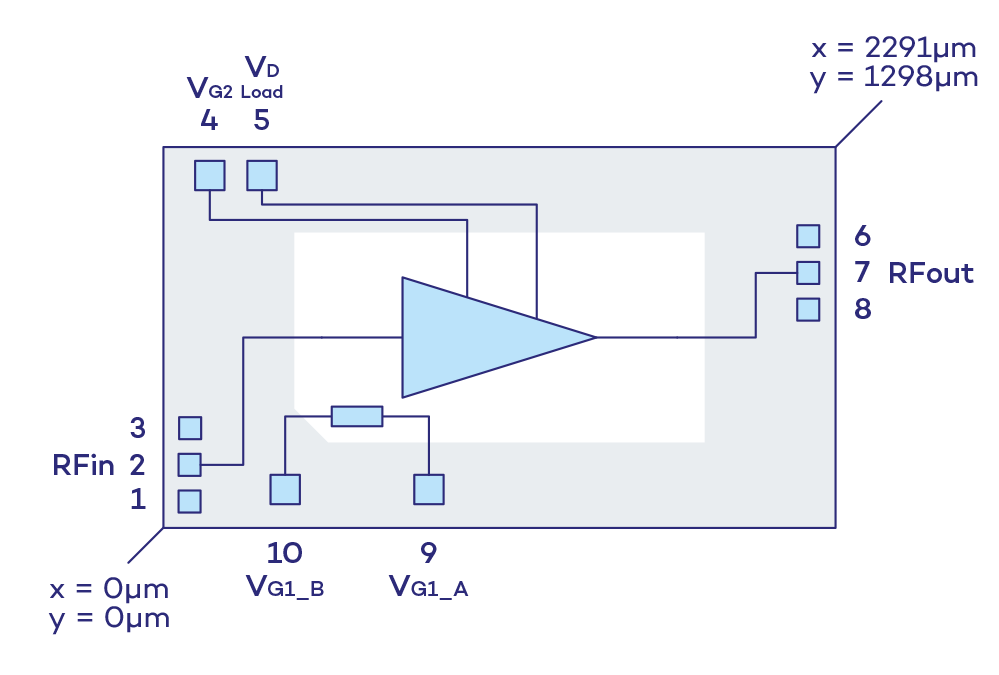

The VM052D is a distributed amplifier designed on a 0.15μm pHEMT process. The device is capable of more than +21dBm of output power at saturation regime, up to 40GHz, and more than +17dBm of output power at 1 dB of gain compression, up to 34GHz. It provides more than...
by e-ssentiel | 20 Jul 2023

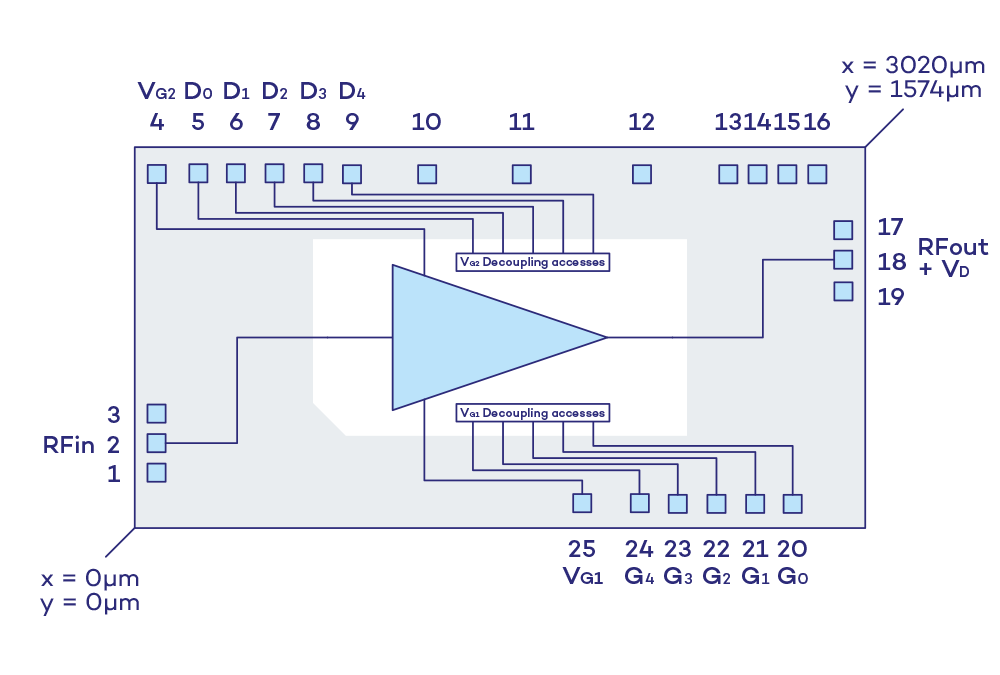

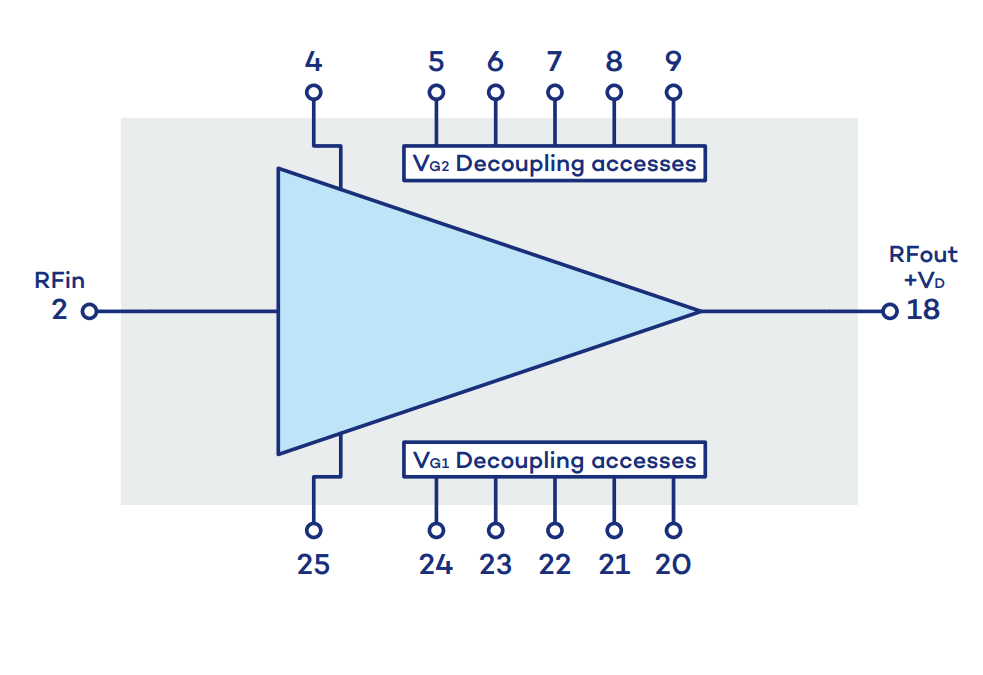

The VM025D is a distributed amplifier designed on a 0.15μm pHEMT process. The device is capable of more than +16dBm of output power at saturation regime, up to 40GHz. It provides more than +14dBm of output power at 1 dB of gain compression, up to 40GHz.The linear gain...
