VM017D

7 to 13GHz / 19dB / 1.6dB NF
Low Noise Amplifier

The VWA5005017LA is a low noise amplifier MMIC die operating in the frequency range 7 to 13GHz.
The device has a typical noise figure of 1.6dB with a typical gain of 19dB.
It is manufactured on a pHEMT Technology and is especially suited for radar and for telecommu- nication applications.

LOW NOISE AMPLIFIERS

Request a quote or information

Download

Datasheet

Features

Low Noise PHEMT GaAs Amplifier
Noise Figure: 1.6dB
Wide band: 7 to 13GHz
Gain: 19dB
Gain Flatness: +/- 1dB
Input Return Loss: -12dB
Output Return Loss: -12dB
Power supply: 70mA @ +5V

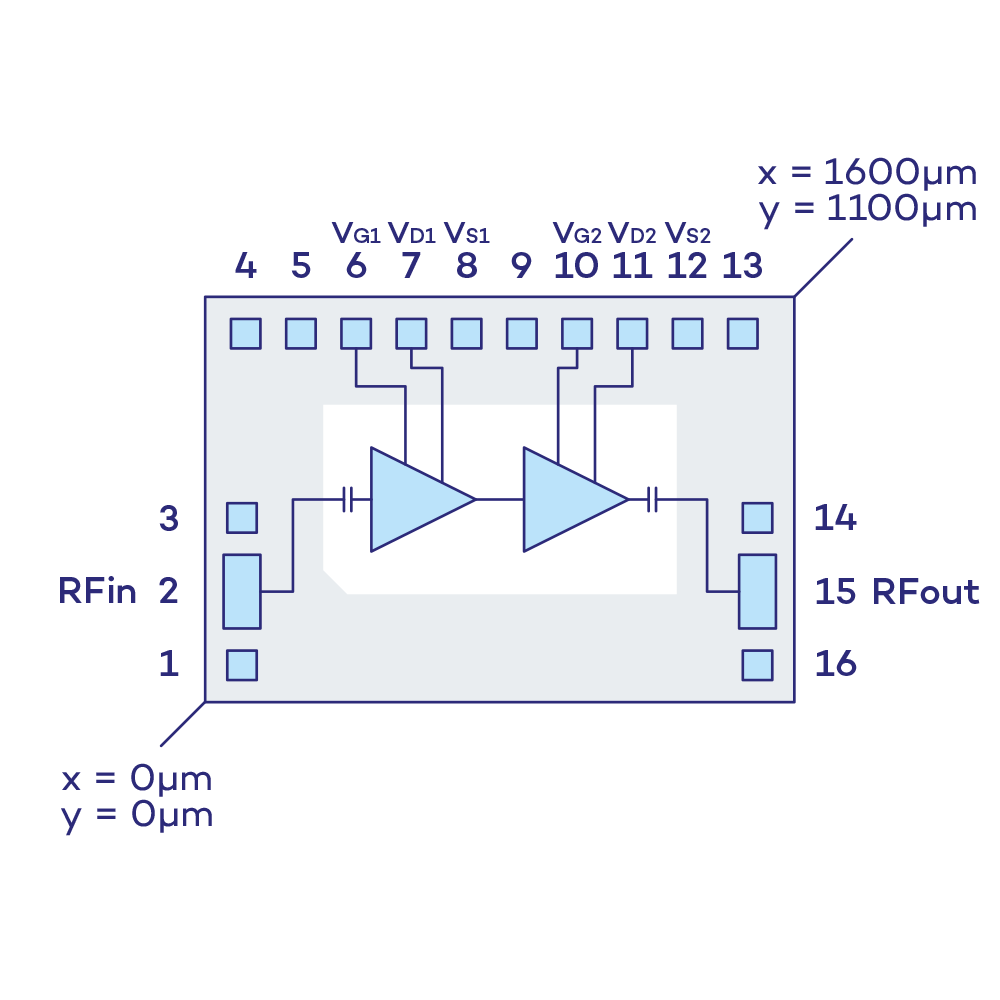

Die dimension: 1,6 x 1,1 x 0.1 (mm)
