VM042D

8 to 12GHz / 25dB / 12W
GaAs Power Amplifier

The VWA5000042AA is a 3 Stages analog High Power MMIC amplifier operating in the frequency range 8 to 12GHz.

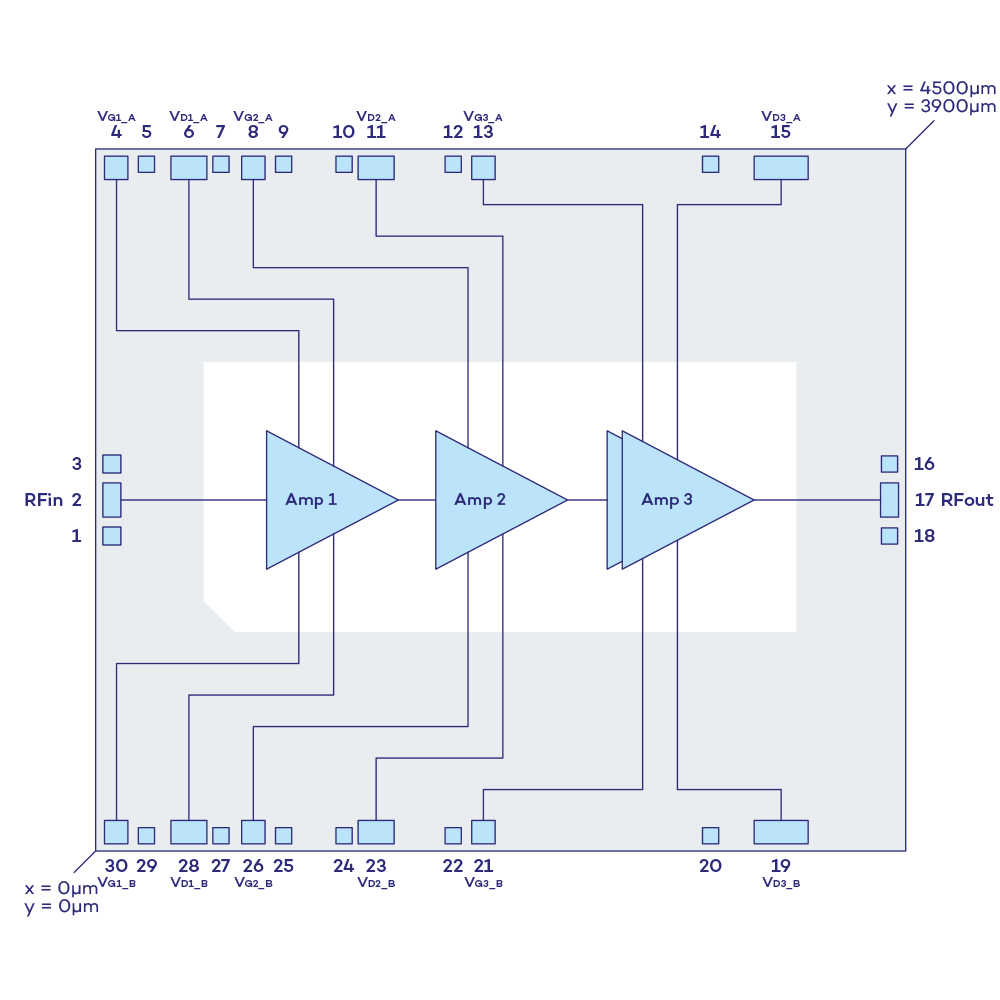

The device is a cascaded 3 stages ampli- fier designed in 0.25μm pHEMT process. The device is capable of 12W output power at Psat, and provides 25dB of large gain from 8 to 12GHz with less than 1dB of Gain varia- tion. The design has been optimized to provide high efficiency, supply current is 4.5A with VD= +8.5V, when delivering 12W output power.

POWER AMPLIFIERS > 3W

Download

Features

  • 3 stages High Power pHEMT GaAs MMIC
  • Wide band: 8 to 12GHz
  • High Output PSAT: 12W
  • High P1dB > +40dBm
  • High large signal gain: 25dB typical
  • 50Ω, AC coupled RF input and output
  • Power supply: 4.5A @ +8.5V; VG= -0.7V
  • Chip size: 4.5 x 3.9 x 0.10mm
