The VWA5000061AA is a gain block amplifier designed on a 0.15μm pHEMT process.
The device delivers +15.5dBm of output power at saturation regime and more than +13.5dBm of output power at 1dB of gain compression. It provides a 0.2dB flat 13dB of linear gain from 8.5GHz to 12GHz. The supply current is 70mA when operating with a single power supply VD= +5V.

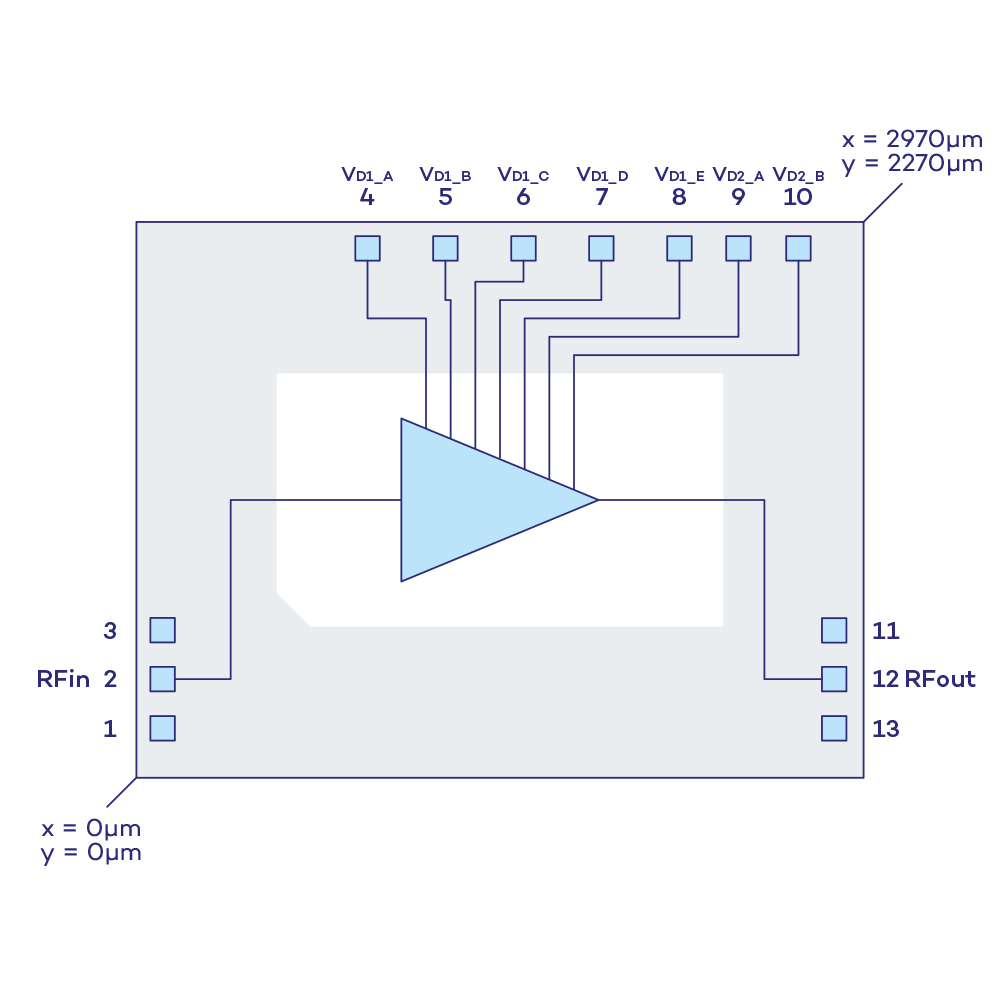

VM061D
8.5 to 12GHz / 13dB / 16dBm
Block Amplifier
Block Amplifier
DRIVER-AMPLIFIERS < 3W
DatasheetFeatures
- Block amplifier pHEMT GaAs MMIC
- Wide band: 8.5 to 12GHz.
- 50ΩRF Ac coupled input and output
- P1dB >+13.5dBm
- Output Psat >+15.5dBm
- Small signal gain: 13dB from 8.5GHz to 12GHz
- Power supply: 70mA @ +5V
- Chip size: 2.27 x 2.97 x 0.1 (mm)
