The VM090S is a packaged power amplifier matched through 50Ω RF accesses. It can provide an output power up to 18W and associated power added efficiency of 29% in pulsed mode.
The VM090S is offered a hermetically sealed

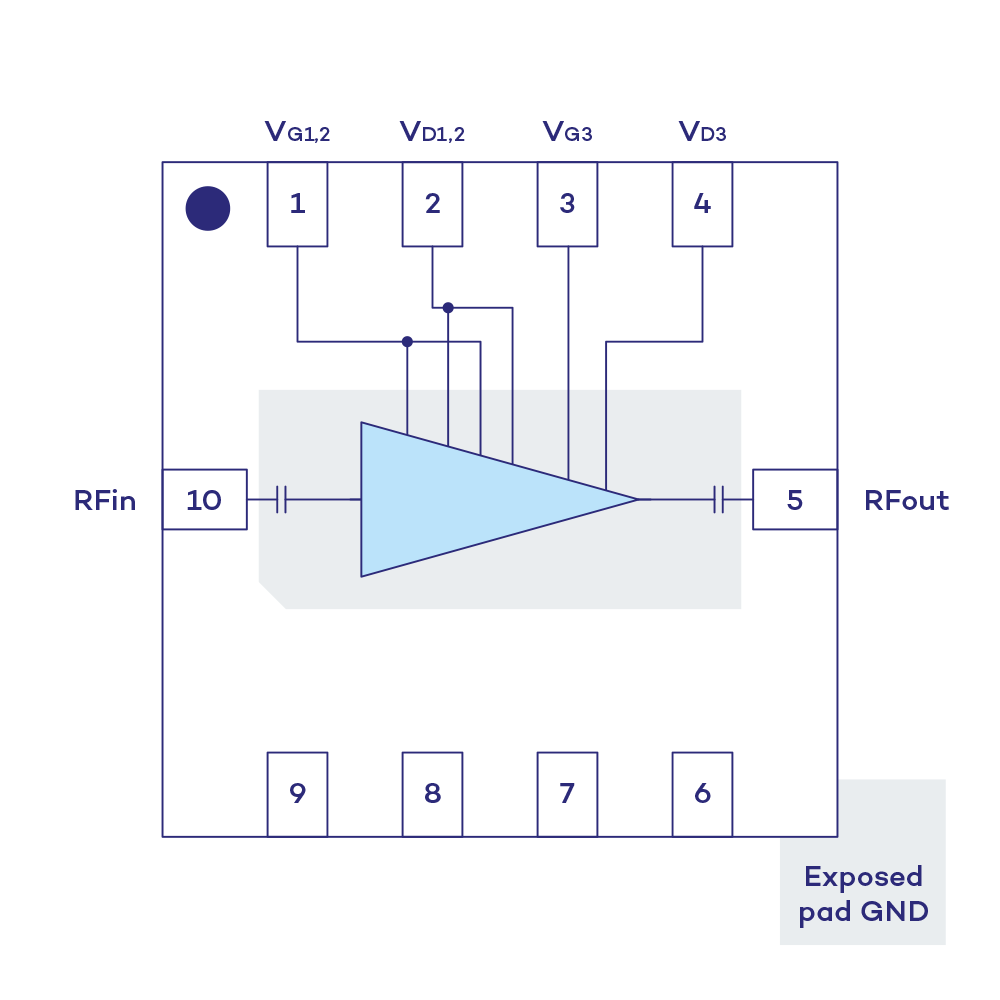

10 leads 8 x 8 QFN designed to a surface mount design board. The QFN has a CuW base for superior thermal management. The VM090S integrates the VM090D VectraWave HPA.
VM090S
8.5 to 10.5GHz - 18W
GaN Power Amplifier
GaN Power Amplifier
POWER AMPLIFIERS > 3W
DatasheetFeatures
- Frequency range 8.5 – 10.5GHz
- Output Power 42.6dBm @Pin = 23dBm
- PAE 29% @Pin = 23dBm
- Linear Gain 27dB
- DC bias VD = +28V, lDQ = 190mA, VG = -2.35V (Typical)
- Hermetic QFN 8 x 8 (mm) 10leads
