The VWA 5001134 AA is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz.
The device has a linear gain of 19dB and a typical noise figure of 1.0dB. Typical operating supply current is only 30mA with a supply voltage at +3V.
It is manufactured on a PHEMT Technology and is especially suited for radar and for telecommuni- cation applications.
VM134D
8 to 12GHz - 19dB - 1.0dB NF
QFN Single Bias
Low Noise Amplifier
QFN Single Bias
Low Noise Amplifier
LOW NOISE AMPLIFIERS
DatasheetFeatures
- Operating frequency range: 8 to 12GHz
- Gain: 19dB
- Noise figure: 1.0dB
- Gain Flatness: +/- 0.7dB
- Input Return Loss: -10dB typ.
- Output Return Loss: -12dB typ.
- Power supply: 30mA @ +3V

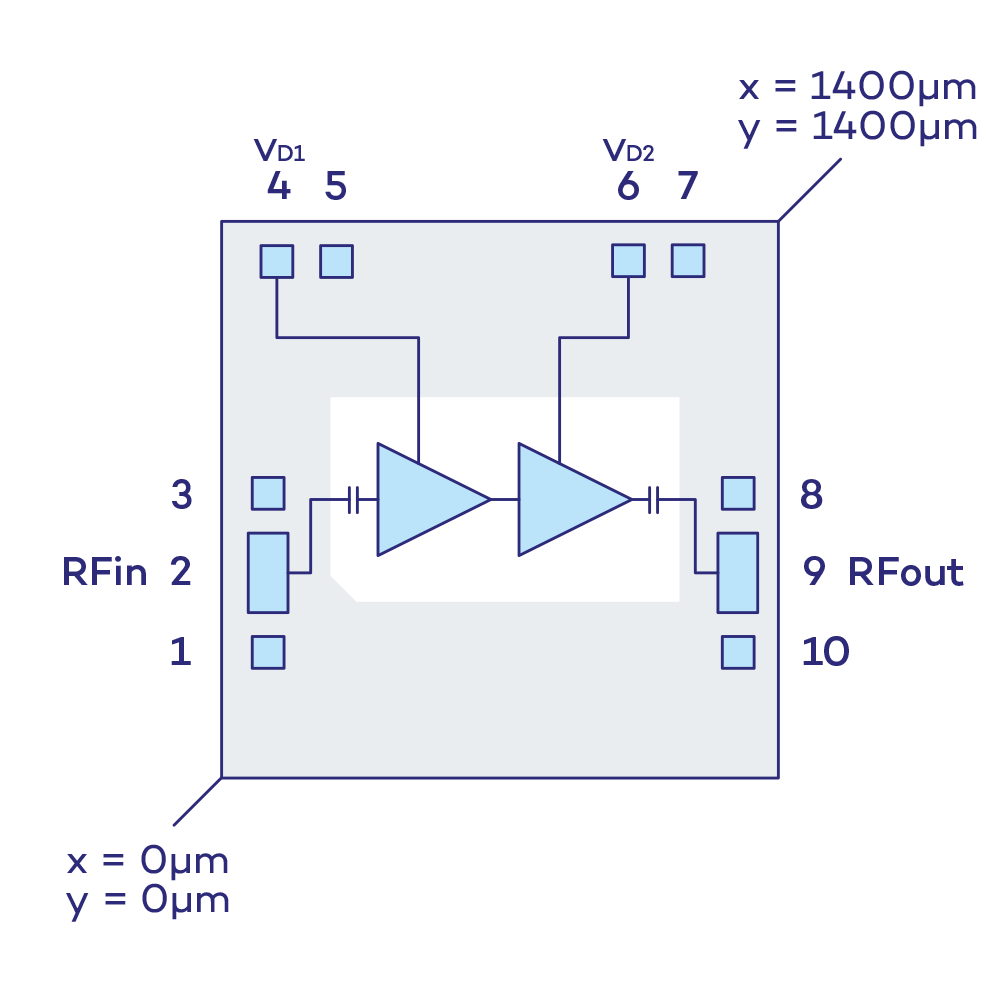

- Die Size: 1.4 x 1.4 x 0.1mm
