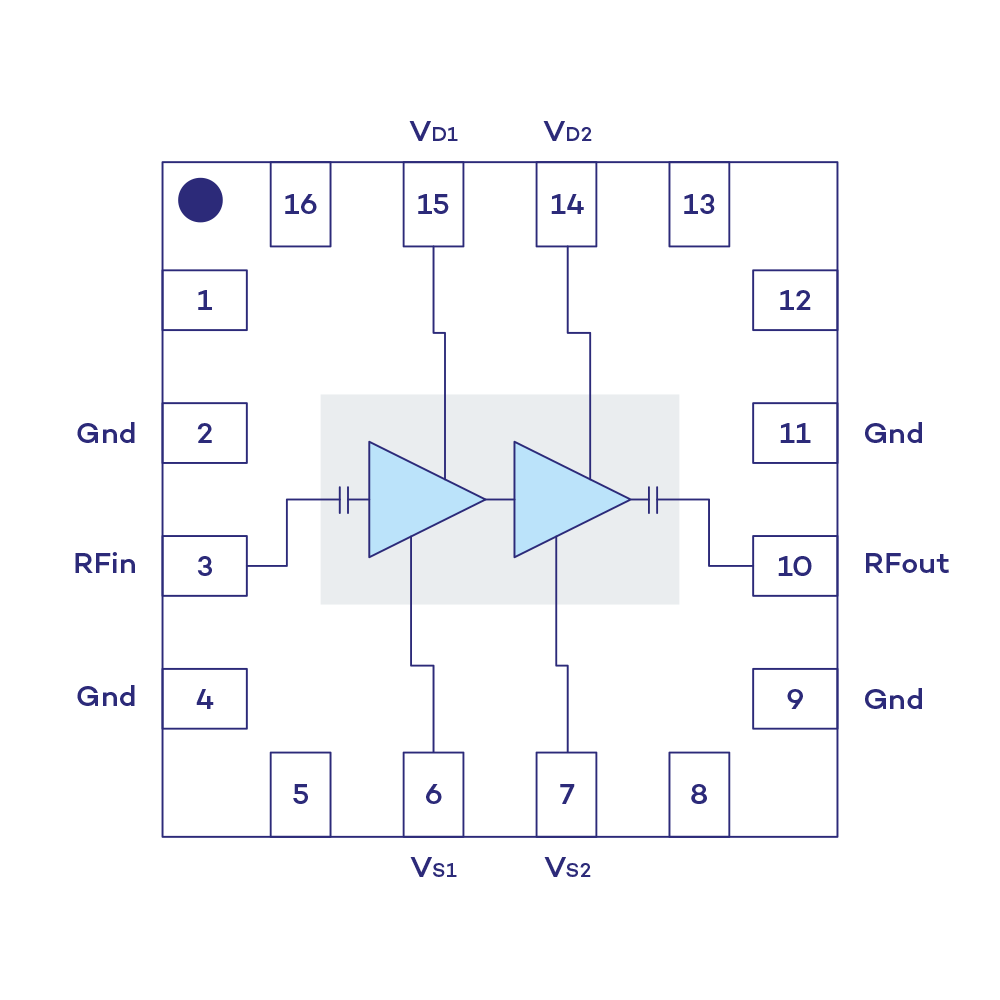

The VWA 0001149 AA is a low noise amplifier MMIC operating in the frequency range 8 to 12GHz. The device is packaged in a 3×3 mm 16 lead Plastic Surface Mount Package (ROHS). This compo- nent uses VWA 5001135 AA VectraWave die.
The device has a linear gain of 18 dB and a typical noise figure of 1.0 dB. Typical operating supply current is only 28mA with a supply voltage at +3V and -3V. It is manufactured on a PHEMT Technology and is especially suited for radar and for telecommunication applications.
VM135Q
8 to 12GHz - 18dB - 1.0dB NF
QFN Dual Bias
Low Noise Amplifier
QFN Dual Bias
Low Noise Amplifier
LOW NOISE AMPLIFIERS
DatasheetFeatures
- Operating frequency range: 8 to 12GHz
- Gain: 18dB
- Noise figure: 1.0dB
- Gain Flatness: +/- 0.7dB
- Input Return Loss: -10dB typ.
- Output Return Loss: -12dB typ.
- Power supply: 28 mA @ VDD = 3V, VSS = -3V
- Package: QFN 3 x 3mm 16 Lead
