The VM171D is a Microwave Monolithic Integrated Circuit (MMIC) designed in HEMT (High Electron Mobility Transistor) structure for an operating frequency range of 32 to 36GHz.
The MMIC is developed on a 120nm GaN/SiC process and is internally matched to 50Ω RF accesses. It provides an output power of 20W, and associated Power Added Efficiency of 22% typical in Continuous Wave (CW) or Pulsed mode.
VM171D
32 to 36GHz - 20W
GaN/SiC
GaN/SiC
POWER AMPLIFIERS > 3W
Download
Downloads

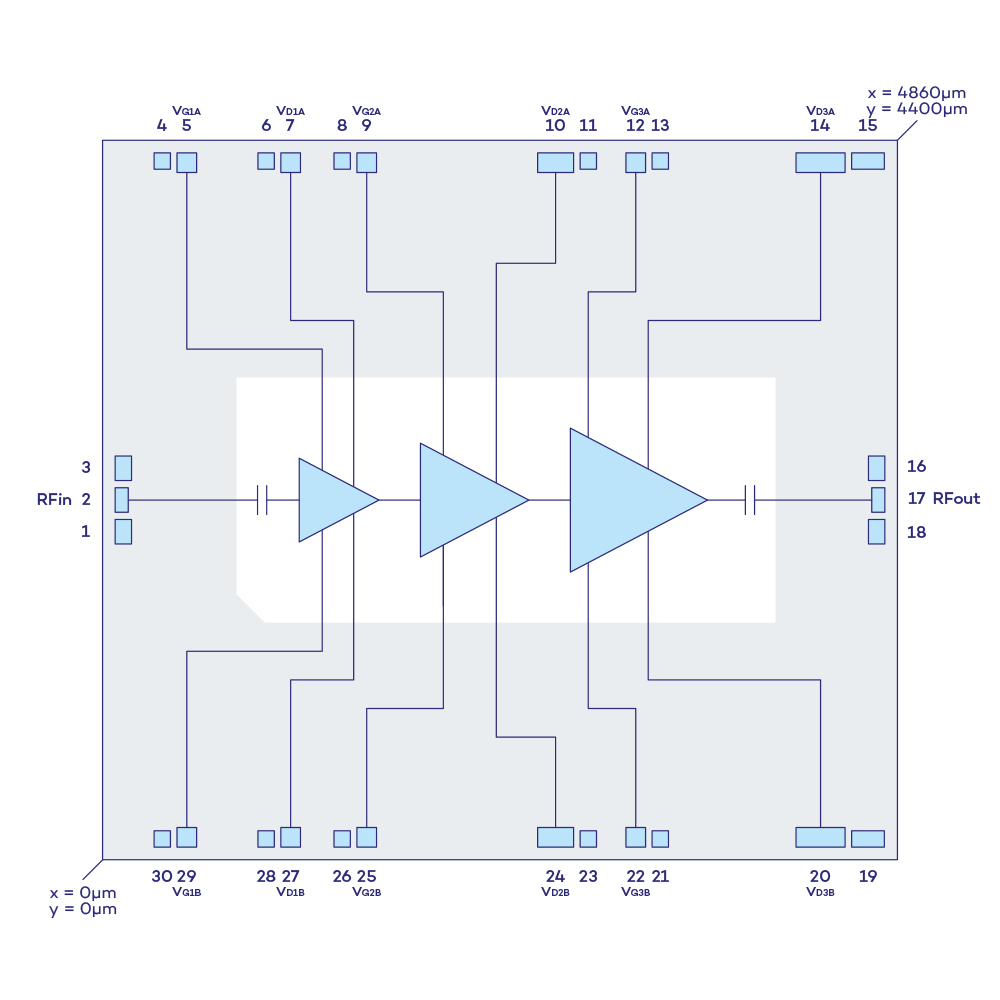

Features
- Operating frequency range: 32 to 36GHz
- Output Power: 43dBm @Pin= 28dBm
- PAE: 22% @Pin= 28dBm
- Linear Gain: 24dB
- DC bias: VD= +24V, IDQ= 2000mA, VG= -1.8V (Typical)
- Chip size: 5.00 x 4.50 x 0.1mm
- IMD3 (40 dBm Pout/Tone) : -20 dBc
