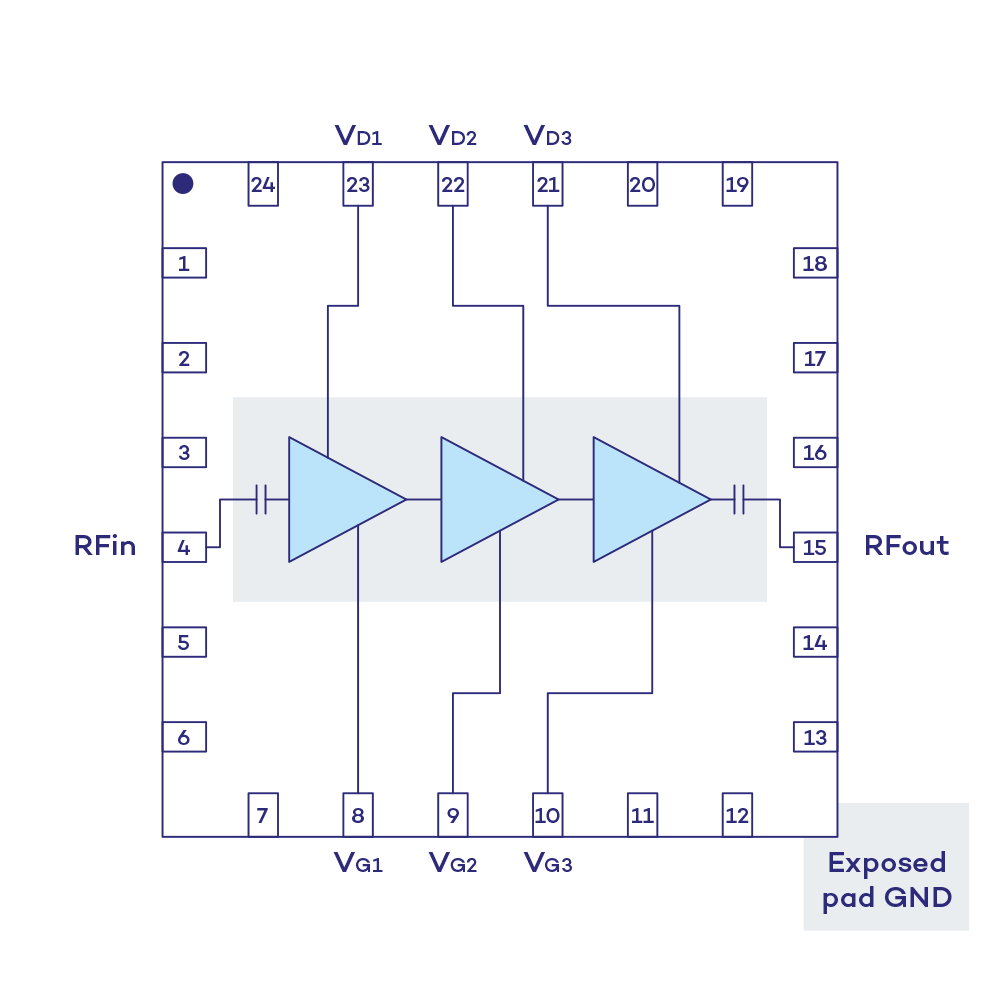

The VWA 0001150 AAAA is 3 stage Medium- Power Low-Noise amplifier MMIC operating in the frequency range 24 to 30 GHz.
The device is packaged in a 4×4 mm 24 lead Plastic Surface Mount Package (ROHS). This component uses VWA 5001174AA Vectrawave die.
The device has a linear gain of 26 dB and a typical noise figure of 2 dB. Output RF power is 20 dBm for a biasing current of 120 mA at 4V supply voltage.
It is manufactured with a 100nm pHEMT GaAs process and is especially suited for radar and for telecommunication applications.
VM174Q
24 to 30GHz
Medium power Amplifier
Medium power Amplifier
DRIVER-AMPLIFIERS < 3W
DatasheetFeatures
- Operating frequency range: 24 to 30 GHz
- Gain: 26 dB
- Noise figure: 2.2 dB
- P1dB = 20dBm – Psat= 22dBm
- Gain Flatness: +/- 1 dB
- Input Return Loss: -10 dB typ.
- Output Return Loss: -10 dB typ.
- Power supply: 120 mA @ VDD=+4 V, VGG=- 0.5V typ.
- Package Used: QFN 4×4 mm 24 Lead
