VM205D

27 to 32GHz,1.3dB NF, 26dB
Low Noise Amplifier

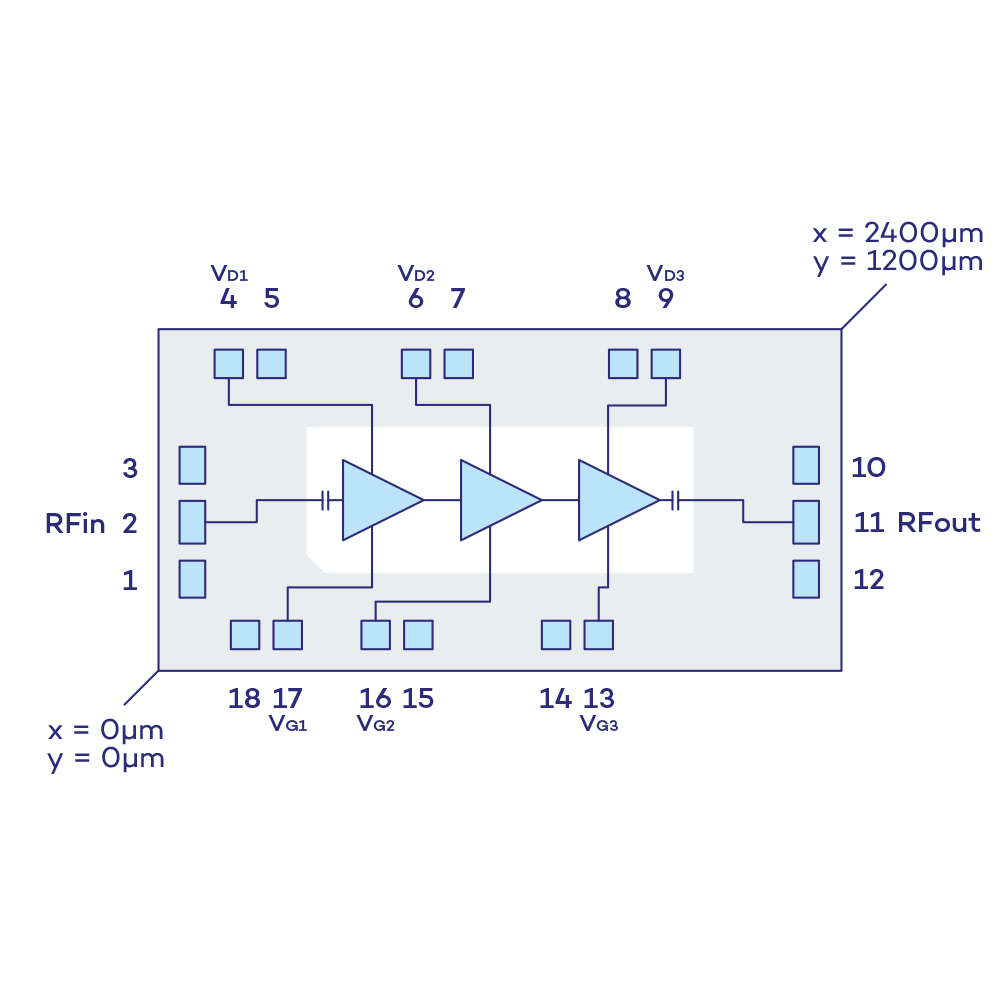

The VM205D is 3 stage Low-Noise amplifier MMIC operating in the frequency range 27 to 32 GHz.
The device has a linear gain of 26 dB and a typical noise figure of 1.3 dB. Output RF power is 19 dBm for a biasing current of 78 mA at +3.5V supply voltage.
It is manufactured with a 100nm pHEMT GaAs process and is especially suited for radar and for telecommunication applications.

LOW NOISE AMPLIFIERS

Request a quote or information

Download

Datasheet

Features

Operating frequency range: 27 to 32 GHz
Gain: 26 dB
Noise figure: 1.3 dB
P1dB = 19dBm – Psat= 21dBm
Gain Flatness: +/- 1 dB
Input Return Loss: -10 dB typ.
Output Return Loss: -10 dB typ.
Power supply: 78 mA @ VD=+3.5 V, VG=-0.58V typ.
Die Size: 1.2 x 2.4 x 0.1 (mm)
