VM215Q is a self-biased wideband amplifier operating in the frequency range 2 to 20GHz under 5V. The device is packaged in a 5×5 mm 24 leads Plastic Surface Mount Package (ROHS).
This component uses VM215D Vectrawave die. The device has a small signal gain of 16dB. With a 1dB compression output power of 15dBm.
The device contains internal DC block and internal drain bias.
VM215Q
2 to 20GHz
QFN WideBand Amplifier
QFN WideBand Amplifier
WIDEBAND AMPLIFIERS
Features
- Frequency range 2 – 20GHz
- Single Bias • Internal Drain Bias
Input and Output DC block Input
and Output 50Ω matched - Linear Gain 15dB
- OP1dB 15dBm
- NF 3dB
- DC bias: VD = +5V, ID = 75mA

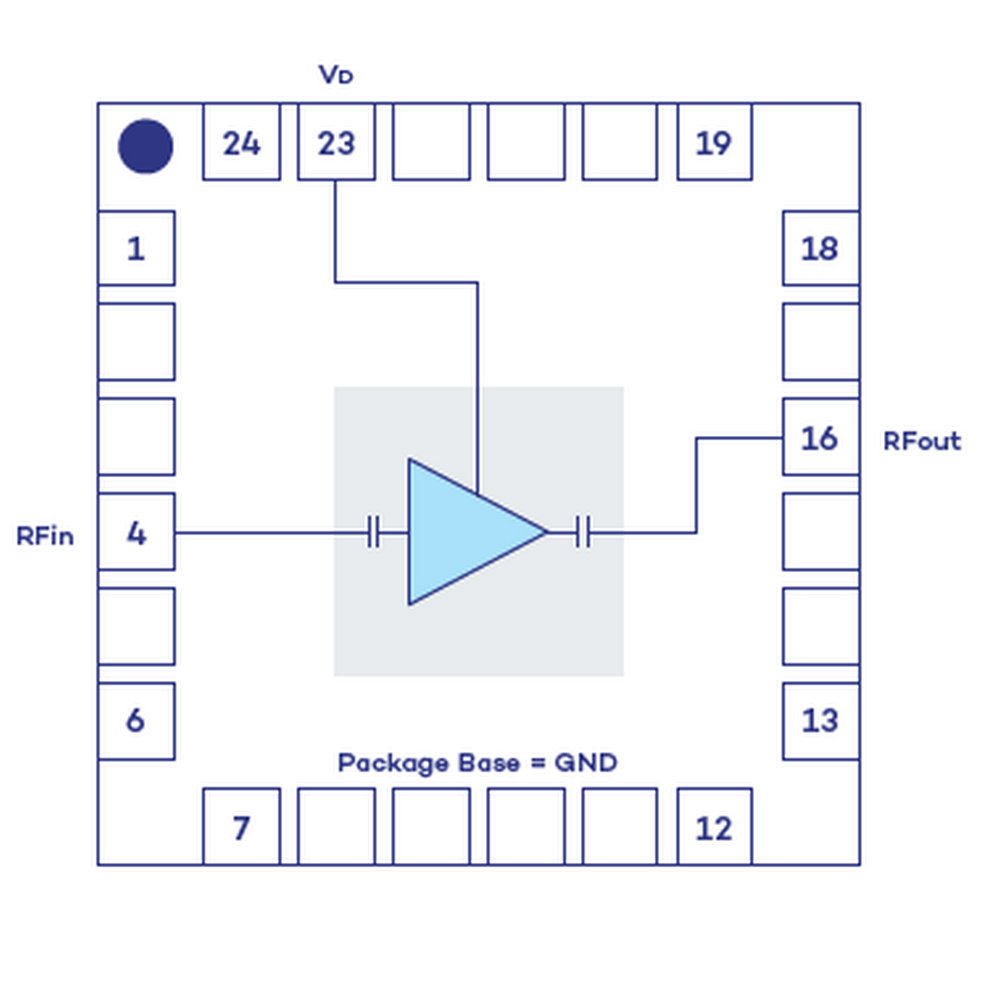

- Plastic QFN 5 x 5 (mm) 24 leads
